Kubernetes

# 启动集群
minikube start
# 查看节点。kubectl 是一个用来跟 K8S 集群进行交互的命令行工具
kubectl get node
# 停止集群
minikube stop
# 清空集群
minikube delete --all
# 安装集群可视化 Web UI 控制台

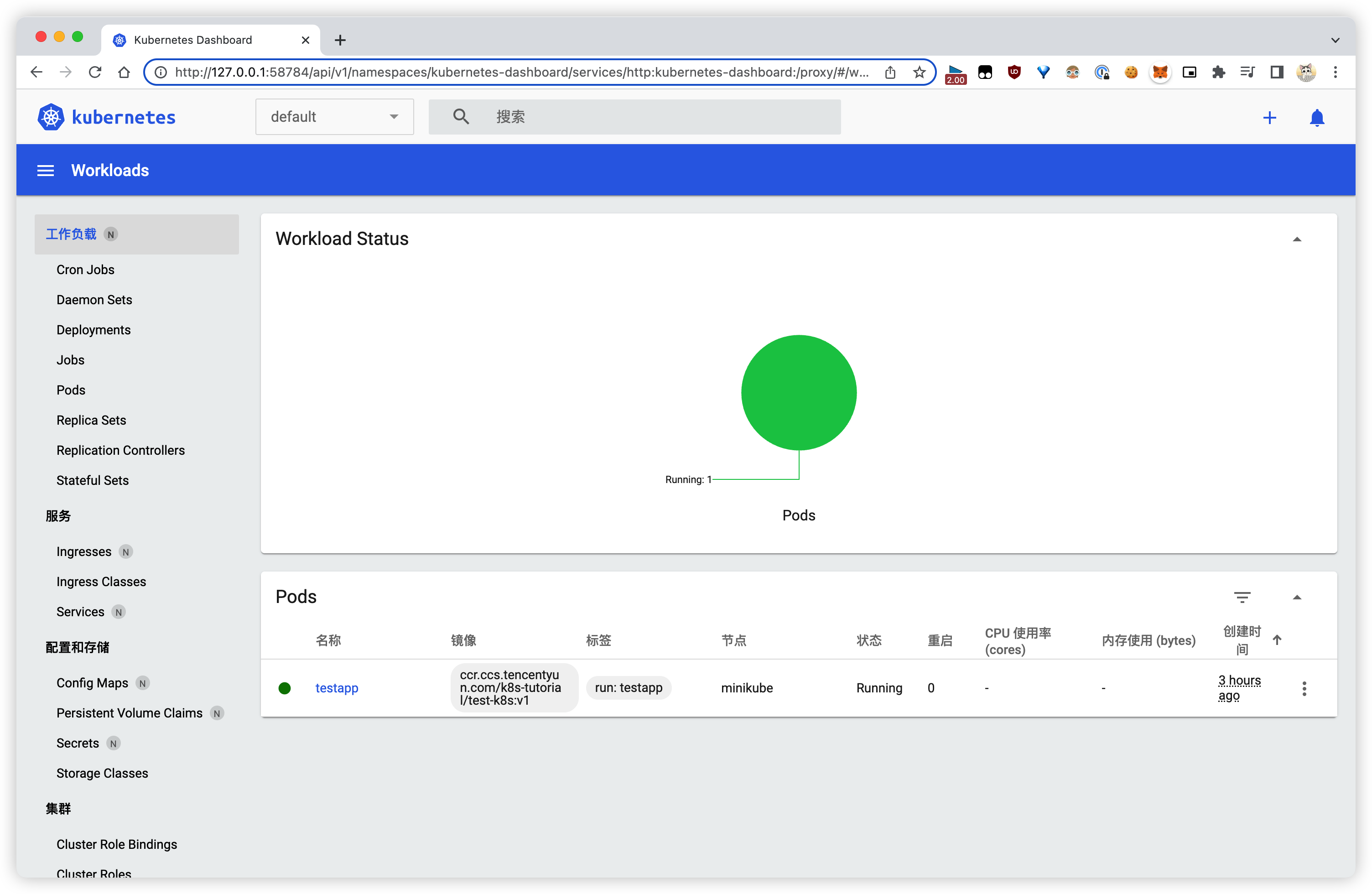

minikube dashboard

# 每个节点分别设置对应主机名
hostnamectl set-hostname master
hostnamectl set-hostname node1
hostnamectl set-hostname node2

# 所有节点都修改 hosts
vim /etc/hosts
10.0.0.17 node1
10.0.0.16 node2
10.0.0.7 master

# 所有节点关闭 SELinux
setenforce 0
sed -i --follow-symlinks 's/SELINUX=enforcing/SELINUX=disabled/g' /etc/sysconfig/selinux

# 所有节点确保防火墙关闭
systemctl stop firewalld
systemctl disable firewalld

# 添加 k8s 安装源
cat <<EOF > kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64
enabled=1
gpgcheck=0
repo_gpgcheck=0
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF
mv kubernetes.repo /etc/yum.repos.d/

# 添加 Docker 安装源
yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

yum install -y kubelet-1.22.4 kubectl-1.22.4 kubeadm-1.22.4 docker-ce

systemctl enable kubelet
systemctl start kubelet
systemctl enable docker
systemctl start docker

# kubernetes 官方推荐 docker 等使用 systemd 作为 cgroupdriver，否则 kubelet 启动不了
cat <<EOF > daemon.json
{
  "exec-opts": ["native.cgroupdriver=systemd"],
  "registry-mirrors": ["https://ud6340vz.mirror.aliyuncs.com"]
}
EOF
mv daemon.json /etc/docker/

# 重启生效
systemctl daemon-reload
systemctl restart docker

# 初始化集群控制台 Control plane
# 失败了可以用 kubeadm reset 重置

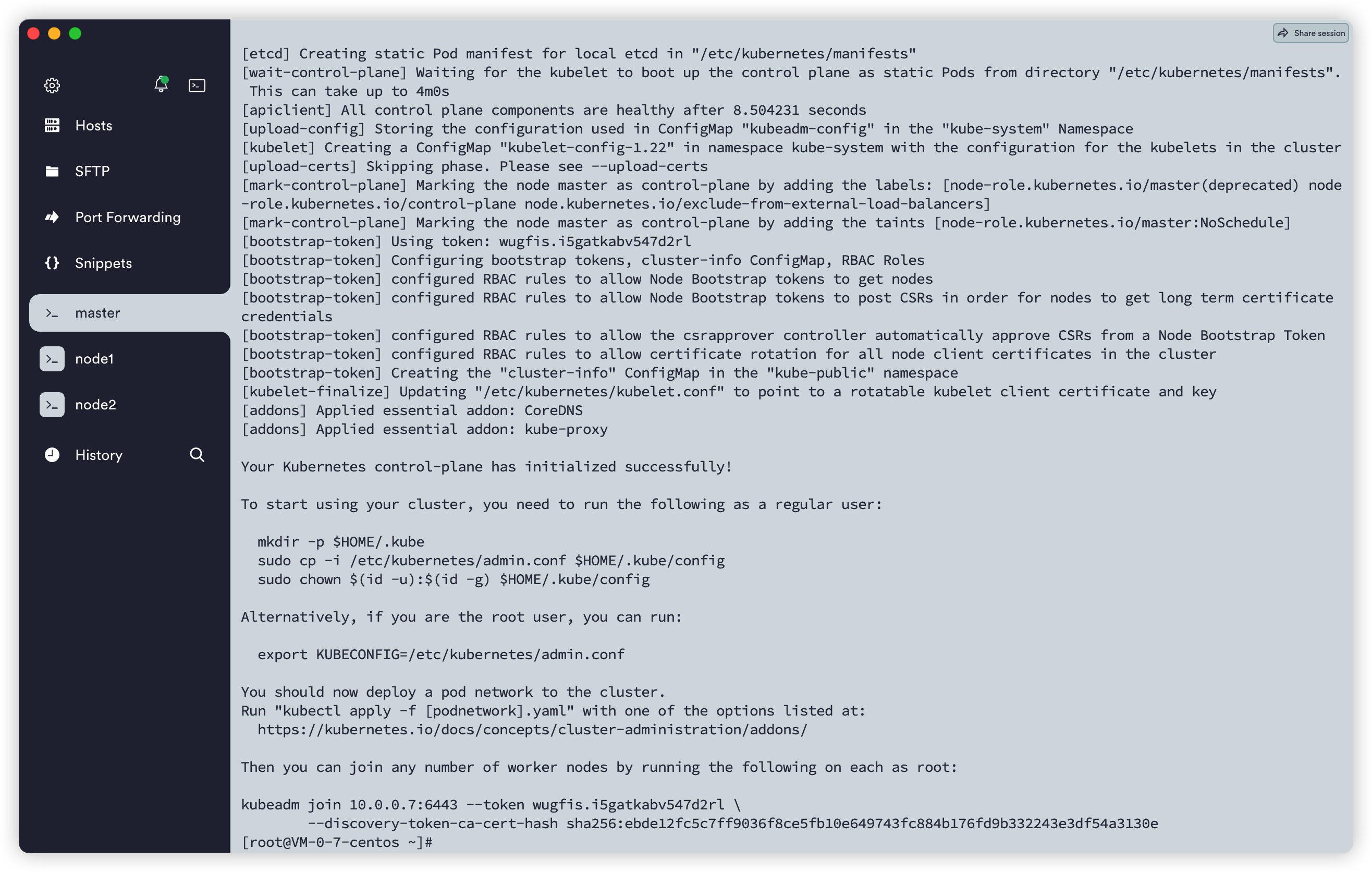

kubeadm init --image-repository=registry.aliyuncs.com/google_containers

# 记得把 kubeadm join xxx 保存起来
# 忘记了重新获取：kubeadm token create --print-join-command

# 复制授权文件，以便 kubectl 可以有权限访问集群
# 如果你其他节点需要访问集群，需要从主节点复制这个文件过去其他节点
mkdir -p $HOME/.kube
cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
chown $(id -u):$(id -g) $HOME/.kube/config

# 在其他机器上创建 ~/.kube/config 文件也能通过 kubectl 访问到集群

kubeadm join 10.0.0.7:6443 --token wugfis.i5gatkabv547d2rl --discovery-token-ca-cert-hash sha256:ebde12fc5c7ff9036f8ce5fb10e649743fc884b176fd9b332243e3df54a3130e

kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

[root@VM-0-7-centos ~]# kubectl get node
NAME     STATUS     ROLES                  AGE     VERSION
master   NotReady   control-plane,master   2m43s   v1.22.4
node1    NotReady   <none>                 33s     v1.22.4
node2    NotReady   <none>                 18s     v1.22.4

[root@VM-0-7-centos ~]# kubectl get node
NAME     STATUS   ROLES                  AGE     VERSION
master   Ready    control-plane,master   4m54s   v1.22.4
node1    Ready    <none>                 2m44s   v1.22.4
node2    Ready    <none>                 2m29s   v1.22.4

# master 删除节点
kubectl  delete nodes node1

# 在被删除的 node 节点中清空集群数据信息
kubeadm reset

kubeadm token create --print-join-command

kubectl run testapp --image=ccr.ccs.tencentyun.com/k8s-tutorial/test-k8s:v1

[root@VM-0-7-centos ~]# kubectl get pod
NAME      READY   STATUS              RESTARTS   AGE
testapp   0/1     ContainerCreating   0          28s

apiVersion: v1
kind: Pod
metadata:
  name: test-pod
spec:
  # 定义容器，可以多个
  containers:
    - name: test-k8s # 容器名字
      image: ccr.ccs.tencentyun.com/k8s-tutorial/test-k8s:v1 # 镜像

apiVersion: apps/v1
kind: Deployment
metadata:
  # 部署名字
  name: test-k8s
spec:
  replicas: 2
  # 用来查找关联的 Pod，所有标签都匹配才行
  selector:
    matchLabels:
      app: test-k8s
  # 定义 Pod 相关数据
  template:
    metadata:
      labels:
        app: test-k8s
    spec:
      # 定义容器，可以多个
      containers:
      - name: test-k8s # 容器名字
        image: ccr.ccs.tencentyun.com/k8s-tutorial/test-k8s:v1 # 镜像

# 部署应用
kubectl apply -f app.yaml
# 查看 deployment
kubectl get deployment
# 查看 pod
kubectl get pod -o wide
# 查看 pod 详情
kubectl describe pod pod-name
# 查看 log
kubectl logs pod-name
# 进入 Pod 容器终端， -c container-name 可以指定进入哪个容器。
kubectl exec -it pod-name --bash
# 伸缩扩展副本
kubectl scale deployment test-k8s --replicas=5
# 把集群内端口映射到节点
kubectl port-forward pod-name 8090:8080
# 查看历史
kubectl rollout history deployment test-k8s
# 回到上个版本
kubectl rollout undo deployment test-k8s
# 回到指定版本
kubectl rollout undo deployment test-k8s --to-revision=2
# 删除部署
kubectl delete deployment test-k8s

# 查看全部
kubectl get all
# 重新部署
kubectl rollout restart deployment test-k8s
# 命令修改镜像，--record 表示把这个命令记录到操作历史中
kubectl set image deployment test-k8s test-k8s=ccr.ccs.tencentyun.com/k8s-tutorial/test-k8s:v2-with-error --record
# 暂停运行，暂停后，对 deployment 的修改不会立刻生效，恢复后才应用设置
kubectl rollout pause deployment test-k8s
# 恢复
kubectl rollout resume deployment test-k8s
# 输出到文件
kubectl get deployment test-k8s -o yaml >> app2.yaml
# 删除全部资源
kubectl delete all --all

apiVersion: v1
kind: Service
metadata:
  name: test-k8s
spec:
  selector:
    app: test-k8s
  type: ClusterIP
  ports:
    - port: 8080        # 本 Service 的端口
      targetPort: 8080  # 容器端口

# 应用配置
kubectl apply -f service.yaml
# 查看服务
kubectl get svc
# 查看服务详情，可以发现 Endpoints 是各个 Pod 的 IP，也就是他会把流量转发到这些节点
kubectl describe svc test-k8s
# 服务的默认类型是 ClusterIP，只能在集群内部访问，我们可以进入到 Pod 里面访问
kubectl exec -it pod-name -- bash
curl http://test-k8s:8080
# 如果要在集群外部访问，可以通过端口转发实现（只适合临时测试用）
kubectl port-forward service/test-k8s 8888:8080
# 如果你用 minikube，也可以这样
minikube service test-k8s

apiVersion: v1
kind: Service
metadata:
  name: test-k8s
spec:
  selector:
    app: test-k8s
  # 默认 ClusterIP 集群内可访问，NodePort 节点可访问，LoadBalancer 负载均衡模式（需要负载均衡器才可用）
  type: NodePort
  ports:
    - port: 8080        # 本 Service 的端口
      targetPort: 8080  # 容器端口
      nodePort: 31000   # 节点端口，范围固定 30000 ~ 32767

apiVersion: v1
kind: Service
metadata:
  name: test-k8s
spec:
  selector:
    app: test-k8s
  type: NodePort
  ports:
    - port: 8080        # 本 Service 的端口
      name: test-k8s    # 必须配置
      targetPort: 8080  # 容器端口
      nodePort: 31000   # 节点端口，范围固定 30000 ~ 32767
    - port: 8090
      name: test-other
      targetPort: 8090
      nodePort: 32000

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mongodb
spec:
  serviceName: mongodb
  replicas: 3
  selector:
    matchLabels:
      app: mongodb
  template:
    metadata:
      labels:
        app: mongodb
    spec:
      containers:
        - name: mongo
          image: mongo:4.4
          # IfNotPresent 仅本地没有镜像时才远程拉，Always 永远都是从远程拉，Never 永远只用本地镜像，本地没有则报错
          imagePullPolicy: IfNotPresent
---
apiVersion: v1
kind: Service
metadata:
  name: mongodb
spec:
  selector:
    app: mongodb
  type: ClusterIP
  # HeadLess
  clusterIP: None
  ports:
    - port: 27017
      targetPort: 27017

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mongodb
spec:
  replicas: 1
  selector:
    matchLabels:
      app: mongodb
  serviceName: mongodb
  template:
    metadata:
      labels:
        app: mongodb
    spec:
      containers:
        - name: mongo
          image: mongo:4.4
          # IfNotPresent 仅本地没有镜像时才远程拉，Always 永远都是从远程拉，Never 永远只用本地镜像，本地没有则报错
          imagePullPolicy: IfNotPresent
          volumeMounts:
            - mountPath: /data/db # 容器里面的挂载路径
              name: mongo-data    # 卷名字，必须跟下面定义的名字一致
      volumes:
        - name: mongo-data              # 卷名字
          hostPath:
            path: /data/mongo-data      # 节点上的路径
            type: DirectoryOrCreate     # 指向一个目录，不存在时自动创建

apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: slow
provisioner: kubernetes.io/aws-ebs
parameters:
  type: io1
  iopsPerGB: "10"
  fsType: ext4

apiVersion: v1
kind: PersistentVolume
metadata:
  name: mongodata
spec:
  capacity:
    storage: 2Gi
  volumeMode: Filesystem  # Filesystem（文件系统） Block（块）
  accessModes:
    - ReadWriteOnce       # 卷可以被一个节点以读写方式挂载
  persistentVolumeReclaimPolicy: Delete
  storageClassName: local-storage
  local:
    path: /root/data
  nodeAffinity:
    required:
      # 通过 hostname 限定在某个节点创建存储卷
      nodeSelectorTerms:
        - matchExpressions:
            - key: kubernetes.io/hostname
              operator: In
              values:
                - node2

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: mongodata
spec:
  accessModes: ["ReadWriteOnce"]
  storageClassName: "local-storage"
  resources:
    requests:
      storage: 2Gi

apiVersion: v1
kind: ConfigMap
metadata:
  name: mongo-config
data:
  mongoHost: mongodb-0.mongodb

# 应用
kubectl apply -f configmap.yaml
# 查看
kubectl get configmap mongo-config -o yaml

apiVersion: v1
kind: Secret
metadata:
  name: mongo-secret
# Opaque 用户定义的任意数据，更多类型介绍 https://kubernetes.io/zh/docs/concepts/configuration/secret/#secret-types
type: Opaque
data:
  # 数据要 base64。https://tools.fun/base64.html
  mongo-username: bW9uZ291c2Vy
  mongo-password: bW9uZ29wYXNz

# 应用
kubectl apply -f secret.yaml
# 查看
kubectl get secret mongo-secret -o yaml

apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: mongodb
spec:
  replicas: 3
  selector:
    matchLabels:
      app: mongodb
  template:
    metadata:
      labels:
        app: mongodb
    spec:
      containers:
        - name: mongo
          image: mongo:4.4
          # IfNotPresent 仅本地没有镜像时才远程拉，Always 永远都是从远程拉，Never 永远只用本地镜像，本地没有则报错
          imagePullPolicy: IfNotPresent
          env:
          - name: MONGO_INITDB_ROOT_USERNAME
            valueFrom:
              secretKeyRef:
                name: mongo-secret
                key: mongo-username
          - name: MONGO_INITDB_ROOT_PASSWORD
            valueFrom:
              secretKeyRef:
                name: mongo-secret
                key: mongo-password
          # Secret 的所有数据定义为容器的环境变量，Secret 中的键名称为 Pod 中的环境变量名称
          # envFrom:
          # - secretRef:
          #     name: mongo-secret

apiVersion: v1
kind: Pod
metadata:
  name: mypod
spec:
  containers:
  - name: mypod
    image: redis
    volumeMounts:
    - name: foo
      mountPath: "/etc/foo"
      readOnly: true
  volumes:
  - name: foo
    secret:
      secretName: mysecret

# 安装
helm repo add bitnami https://charts.bitnami.com/bitnami
helm install my-mongo bitnami/mongodb

# 指定密码和架构
helm install my-mongo bitnami/mongodb --set architecture="replicaset",auth.rootPassword="mongopass"

# 删除
helm ls
heml delete my-mongo

# 查看密码
kubectl get secret my-mongo-mongodb -o json
kubectl get secret my-mongo-mongodb -o yaml > secret.yaml

# 临时运行一个包含 mongo client 的 debian 系统
kubectl run mongodb-client --rm --tty -i --restart='Never' --image docker.io/bitnami/mongodb:4.4.10-debian-10-r20 --command -- bash

# 进去 mongodb
mongo --host "my-mongo-mongodb" -u root -p mongopass

# 也可以转发集群里的端口到宿主机访问 mongodb
kubectl port-forward svc/my-mongo-mongodb 27017:27018

# 创建命名空间
kubectl create namespace testapp
# 部署应用到指定的命名空间
kubectl apply -f app.yml --namespace testapp
# 查询
kubectl get pod --namespace kube-system

# 切换命名空间
kubens kube-system
# 回到上个命名空间
kubens -
# 切换集群
kubectx minikube

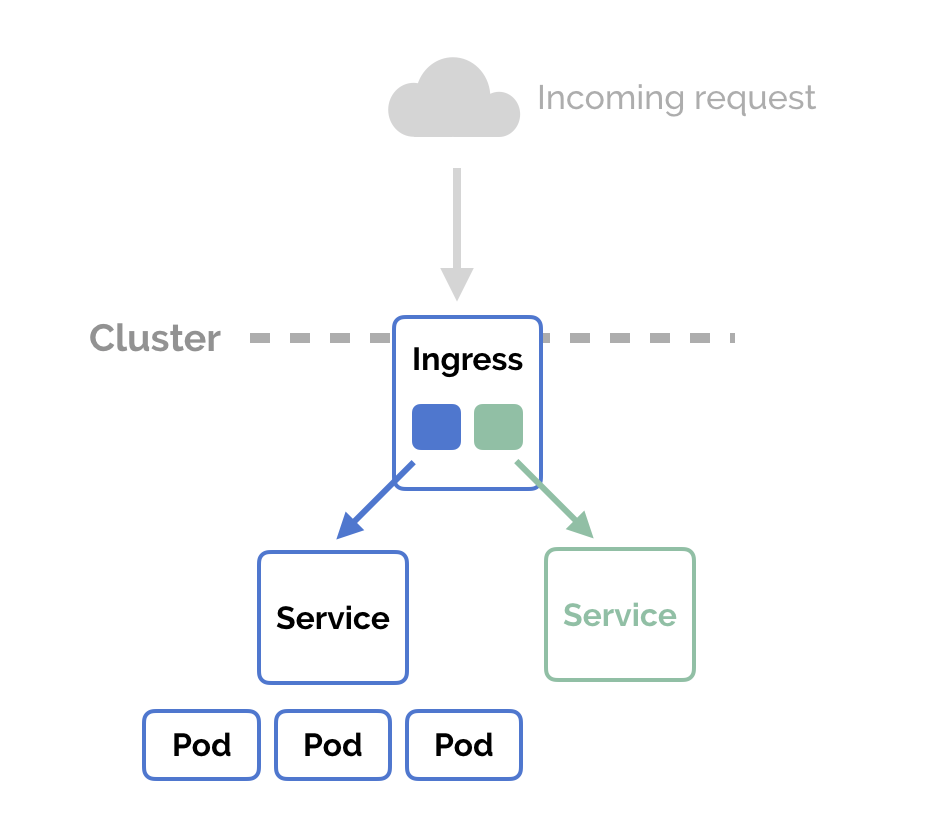

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: simple-example
spec:
  ingressClassName: nginx
  rules:
  - host: tools.fun
    http:
      paths:
      - path: /easydoc
        pathType: Prefix
        backend:
          service:
            name: service1
            port:
              number: 4200
      - path: /svnbucket
        pathType: Prefix
        backend:
          service:
            name: service2
            port:
              number: 8080
